Small UAV Position and Attitude, Raw Sensor, and Aerial Imagery Data Collected over Farm Field with Surveyed Markers

Mokhtarzadeh, Hamid
Colten, Todd
2015-02-25
Thumbnail Image

Persistent link to this item

http://dx.doi.org/10.13020/D6BC7Z
 https://hdl.handle.net/11299/170139
Statistics
View Statistics

Keywords

Collection period

10/22/14
10/22/14

Date completed

2015-02

Date updated

Time period coverage

10/22/14

Geographic coverage

St. Peter, Minnesota

Source information

Journal Title

Journal ISSN

Volume Title

Title

Small UAV Position and Attitude, Raw Sensor, and Aerial Imagery Data Collected over Farm Field with Surveyed Markers

Published Date

2015-02-25

Authors

Group

Author Contact

Mokhtarzadeh, Hamid
mokh0006@umn.edu

Type

Dataset
Spatial Data
Observational Data

Abstract

Imagery and sensor data from a commercial small Uninhabited Aerial Vehicle flown over an agriculture field on the morning of October 22, 2014 have been logged and documented. The field includes 16 surveyed ground control points laid out in a 4x4 square serving as known ground control points. This data set serves to study both challenges and opportunities of UAV-based remote sensing for precision agriculture applications. The raw sensor data can be used for navigation system design and analysis. The imagery and logged aircraft state can be used for image processing as well as remote sensing analysis. It is being shared to served as a documented data set for testing new concepts and ideas.

Description

This data set consists of eight data files. The raw data file, flight_data.csv, consists of sensor readings taken by the UAV during flight; these data include altitude, latitude and longitude, velocity, acceleration, and wind speed and direction. The ground_control_points_coordinates.csv file is a table describing the three-dimensional position of UAV ground control points. GIS files containing data involving the ground control points and the UAV flight path can be found in supplemental_GIS_files.zip; these files can be viewed with Google Earth. JPEG snapshots of the GIS file outputs are named ground_control_points_map.jpg and uav_groundtrack_map.jpg, respectively. The images.zip file contains photos logged by the UAV during flight, as well as a media folder containing pictures of the research team, the ground control points, and the UAV device. The UAV-logged photos are arranged by image type (RGB or NIR) and processing status (original or processed). An orthorectified example of the processed RGB photos can be found in the sample_orthorectified_view.jpg file. Climate data for the flight day and specification sheets for the UAV and imaging sensor can be found in data_sheets.zip.

Referenced by

Related to

Replaces

item.page.isreplacedby

License

CC0 1.0 Universal Public Domain Dedication
 http://creativecommons.org/publicdomain/zero/1.0/

Publisher

Collections

Data Repository for U of M (DRUM)
Aerial Data

Funding information

MnDRIVE

item.page.sponsorshipfunderid

item.page.sponsorshipfundingagency

item.page.sponsorshipgrant

Previously Published Citation

Other identifiers

Suggested citation

Mokhtarzadeh, Hamid; Colten, Todd. (2015). Small UAV Position and Attitude, Raw Sensor, and Aerial Imagery Data Collected over Farm Field with Surveyed Markers. Retrieved from the Data Repository for the University of Minnesota (DRUM), http://dx.doi.org/10.13020/D6BC7Z.

View/Download File

File View/Open
Description
Size
flight_data.csv
Spreadsheet of raw UAV sensor data
(10.31 MB)

ground_control_points_coordinates.csv
Table of ground control points
(677 B)

supplemental_GIS_files.zip
Supplemental GIS files for data set
(25.2 KB)

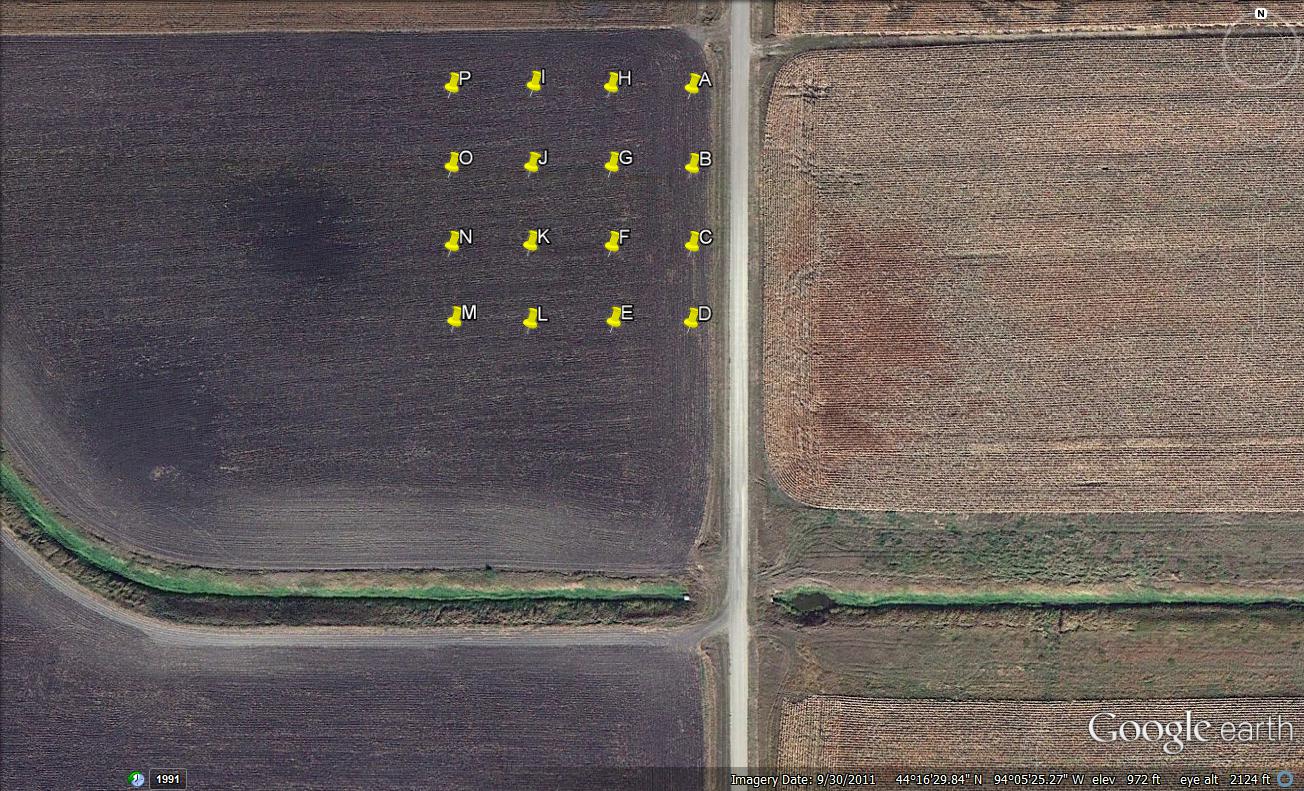

Aerial image of ground control points
(286.27 KB)

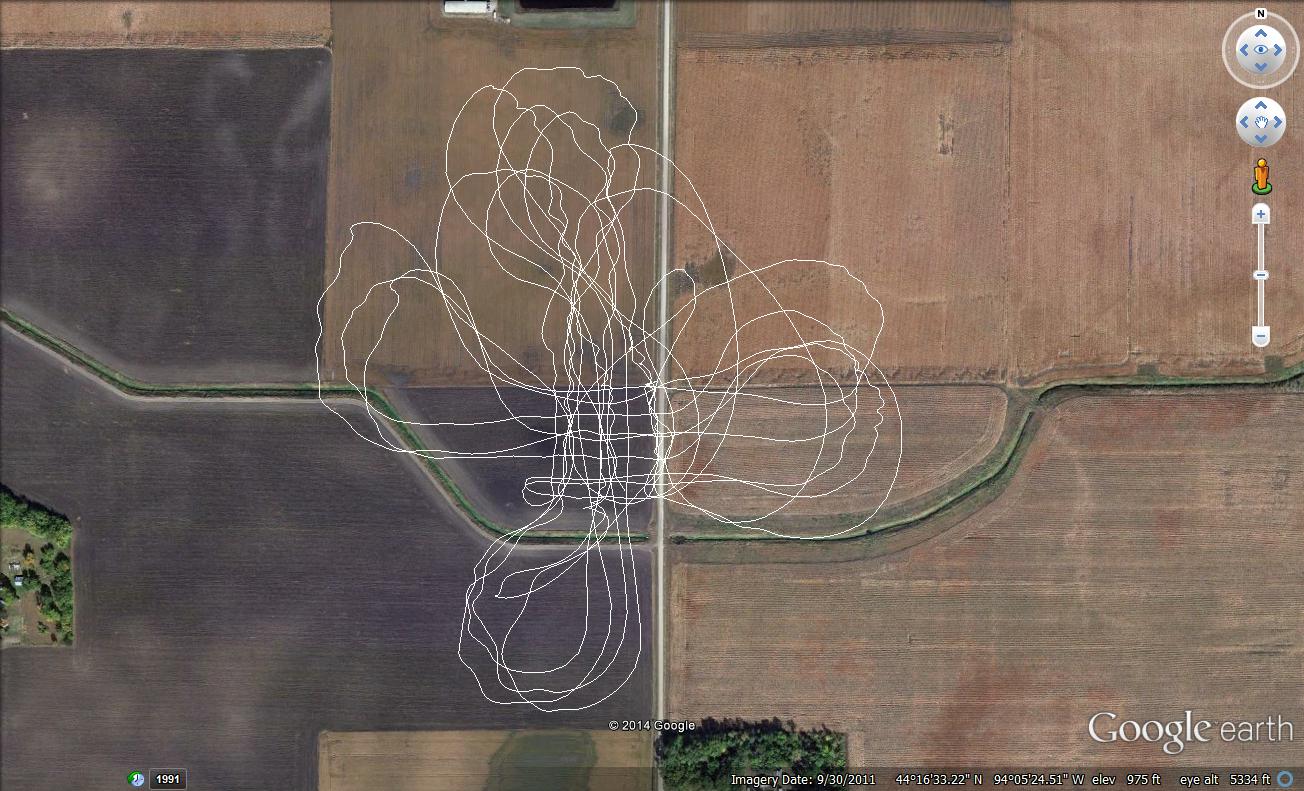

Aerial image of UAV flight path
(187.69 KB)

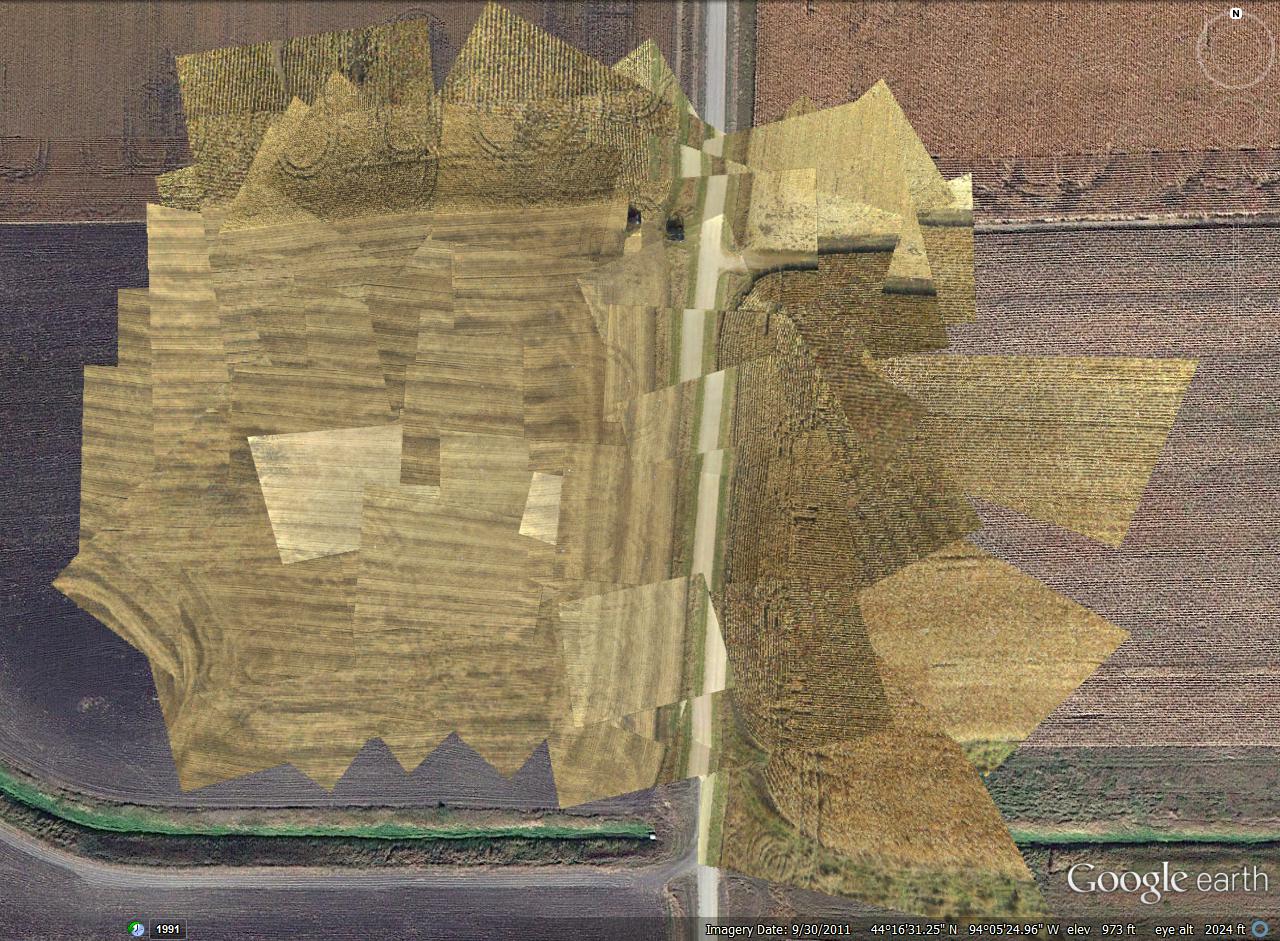

Aerial image of orthorectified photos
(306.72 KB)

images.zip
Images (original and processed) logged by UAV during flight
(1.47 GB)

data_sheets.zip
Data brochures for UAV, imaging sensor, and climate data
(2.23 MB)

README.pdf
Description of data set
(179.01 KB)
